Key Features
- Professional fluid head with continuous counterbalance system
- Supports payloads from 30 lb to 120 lb at ±90° tilt range
- Extended EX Mode supports up to 240 lb payload at reduced tilt range
- Ultra-smooth pan and tilt performance for cinema production
- Mitchell flat-base mounting system
- Heavy-duty Cine HD aluminum tripod supports up to 309 lb
- Single-stage 2-section aluminum leg design for maximum rigidity
- Ground spreader enhances stability and protects delicate surfaces
- Illuminated bubble level for accurate setup
- Designed for large-format digital cinema, IMAX, VFX, and broadcast camera systems
Product Description

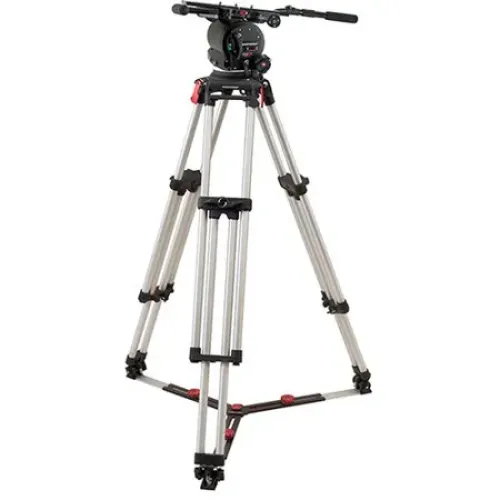

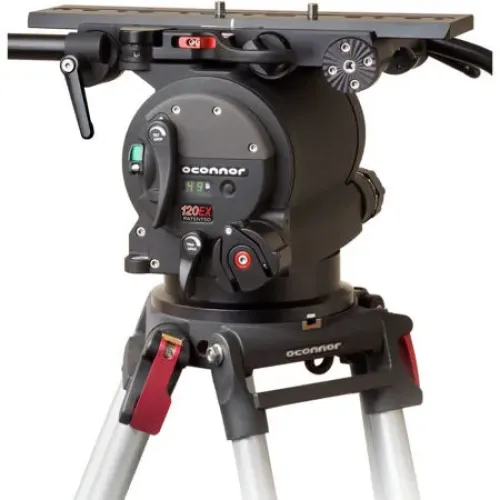

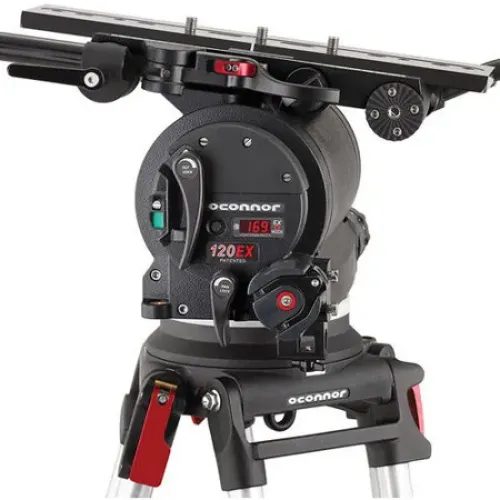

The OConnor 120EX Fluid Head System with Cine HD Aluminum Tripod is a premium heavy-duty camera support solution engineered for the world's most demanding cinematography applications. Built around the renowned 120EX fluid head, this system delivers the legendary OConnor feel with continuously variable counterbalance and drag controls that provide exceptionally smooth camera movement.
The patented EX Technology allows the 120EX to support an extraordinary payload range from 30 lb up to 240 lb, making it ideal for large cinema cameras, IMAX rigs, VFX setups, remote heads, and long-lens configurations. Unlike conventional fluid heads, the 120EX can increase payload capacity through EX Mode while maintaining precise balance and control.
Paired with the rugged Cine HD 2-section aluminum tripod, this system offers outstanding torsional rigidity and stability. The included ground spreader further enhances support under heavy loads while protecting studio floors and delicate shooting surfaces. Whether working in studio environments or demanding production locations, the OConnor 120EX system delivers uncompromising performance for professional cinematographers.
Specifications
| Specification | Details |
|---|---|
| Fluid Head Model | OConnor 120EX |
| Head Type | Fluid Head |
| Base Mount | Mitchell Flat Base |
| Counterbalance | Continuous Stepless Counterbalance |
| Payload Capacity | 30-120 lb (14-54 kg) at ±90° |
| Maximum EX Capacity | 240 lb (109 kg) at ±60° |
| Tilt Range | +90° / -90° |
| Pan Range | 360° |
| Drag Control | Continuous |
| Bubble Level | Illuminated |
| Head Weight | 34.1 lb (15.5 kg) |
| Tripod Model | Cine HD |
| Tripod Material | Aluminum |
| Tripod Capacity | 309 lb (140 kg) |
| Leg Sections | 2 |
| Maximum Height | 69.2 in (175.8 cm) |
| Minimum Height | 33.6 in (85.3 cm) |
| Folded Length | 40.4 in (103 cm) |
| Tripod Weight | 29.3 lb (13.3 kg) |
| Spreader Type | Ground-Level Spreader |
What's Included
- OConnor 120EX Standard Film Fluid Head
- Pan Handle
- Pan Handle Extension
- Cine HD 2-Section Aluminum Tripod
- Ground-Level Spreader for Cine HD Tripod
- Documentation and Manufacturer Warranty
Ideal Applications
- Feature film production
- IMAX camera systems
- Large-format digital cinema cameras
- Broadcast and studio productions
- VFX motion-control work
- Long-lens wildlife cinematography
- Heavy camera payload configurations
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

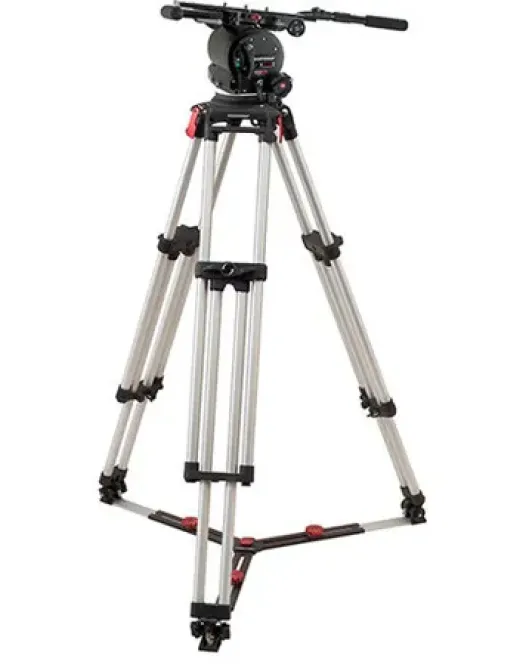

OConnor 120EX Fluid Head System with Cine HD 2-Section Aluminum Tripod and Ground Spreader – 240 lb Payload Professional Cinema Support Kit
